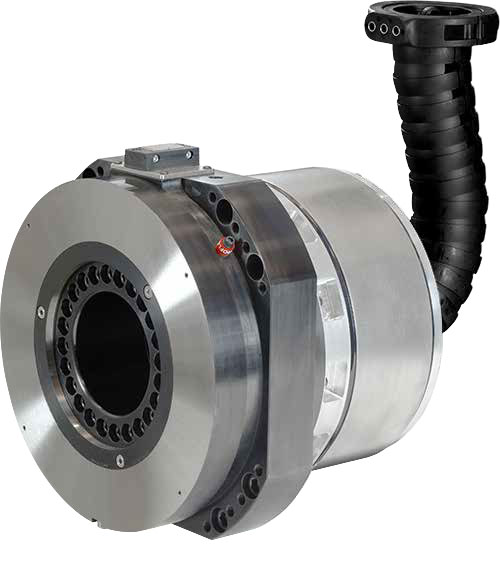

AX SERIES B AXIS MODULE

Smart solution trasmission

The AX series of rotary transmission modules was designed with the aim of providing a Direct Drive and integrated solution for the actuation of heads with a tilting electric spindle, commonly known as ‘B Axis’.

The series of AX modules is developed around an innovative concept of modularity, highly engineered and distinguished by the marked integration of the main components of a rotary axis for a machine tool.

AX SERIES SYSTEMS
Design industrializzato

Parts they are composed of

A torque motor with a cooling jacket, the support bearing with an integrated high precision absolute encoder and hydraulic clamping device
Design industrializzato

2 key variations

Built on 2 main variations that correspond to the bearing diameter: AX-200 (Ø 200 mm) and AX-260 (Ø 260 mm).
Motore Torque Technai
Elevate prestazioni

No constraint

The electric spindle is chosen by the customer
Efficienza energetica

Reference market

4th/5th axis on mobile column milling machines and vertical machining centres
For more informations  DOWNLOAD BROCHURE
SYNTHESIS AND HIGH PRECISION

The result is a very interesting product to design a 4th/5th axis on mobile column milling machines and vertical machining centres, in a simple and competitive way thanks to the synthesis, also in the production costs, which the module allows to be set up.

AX SERIES

Versatility and Innovation

The key element of the project is precisely a unit, intended as an axis actuation system, including the torque motor with a cooling jacket, the support bearing with an integrated high-precision absolute encoder and the hydraulic clamping device. The latter is available with the high torque option, to allow turning processes with an indexed axis (3+2).

The range of transmission modules for AX rotary axes is split into two key variations, which correspond to the respective bearing diameter: AX-200 (Ø 200 mm) and AX-260 (Ø 260 mm). The project modularity allows every variation to be easily equipped with different motor heights and with a package of options to customise the product, making it suitable for multiple configurations and applications.

SERIE B-AXIS Varianti & Formati

AX200-M260

D.D. MOTOR DATA ENCODER DATA
D.D.M. series MK-CS-260/... SIZE 100 SIZE 150 SIZE 200 SIZE 250
Tac [Nm] 128 194 278 327 AMO system - Absolute EnDat2.2
Iac [A] 6.4 9 9 11 Line count 860 T/rev
Twc [Nm] 321 480 650 800 Interpolation factor 14 bit
Iwc [A] 15.9 21.8 21.8 27 Total digital resolution 23 bit
Tpk [Nm] 580 873 1166 1405 Precision / repeatability ±1 arcsec
Ipk [A] 39.8 53 53 67 System accuracy ±8 arcsec



AX200-M290

D.D. MOTOR DATA ENCODER DATA
D.D.M. series MK-CS-290/... SIZE 070 SIZE 100 SIZE 150 SIZE 200
Tac [Nm] 132 186 275 343 AMO system - Absolute EnDat2.2
Iac [A] 8.5 7.1 7 10.6 Line count 860 T/rev
Twc [Nm] 322 455 695 926 Interpolation factor 14 bit
Iwc [A] 20.5 17 17.3 28.3 Total digital resolution 23 bit
Tpk [Nm] 646 868 1290 1600 Precision / repeatability ±1 arcsec
Ipk [A] 58 46 45.6 68 System accuracy ±8 arcsec



AX260-M260

D.D. MOTOR DATA ENCODER DATA
D.D.M. series MK-CS-260/… SIZE 100 SIZE 150 SIZE 200 SIZE 250
Tac [Nm] 128 194 278 327 AMO system - Absolute EnDat2.2
Iac [A] 6.4 9 9 11 Line count 1088 T/rev
Twc [Nm] 321 480 650 800 Interpolation factor 14 bit
Iwc [A] 15.9 21.8 21.8 27 Total digital resolution 24 bit
Tpk [Nm] 580 873 1166 1405 Precision / repeatability ±1 arcsec
Ipk [A] 39.8 53 53 67 System accuracy ±6 arcsec



AX260-M290

D.D. MOTOR DATA ENCODER DATA
D.D.M. series MK-CS-290/... SIZE 100 SIZE 150 SIZE 200 SIZE 250
Tac [Nm] 132 186 275 343 AMO system - Absolute EnDat2.2
Iac [A] 8.5 7.1 7 10.6 Line count 1088 T/rev
Twc [Nm] 322 455 695 926 Interpolation factor 14 bit
Iwc [A] 20.5 17 17.3 28.3 Total digital resolution 24 bit
Tpk [Nm] 646 868 1290 1600 Precision / repeatability ±1 arcsec
Ipk [A] 58 46 45.6 68 System accuracy ±6 arcsec



Motori Torque
SPECIAL SYSTEMS

Discover the infinite customisation options

No limit, only amazing possibilities.
