MT-M SERIES TABLE MODULE

Transmission Modules

The MT-M series of transmission modules for rotary axes is the only ‘plug&play’ module, which thanks to its innovative and unconventional nature of design intuition, actually represents the source of a new industrial component – the torque servomotor for machine tool axes.

The basic principle of the MT-M series rotary axis transmission modules is to extract functional elements, such as support bearing, encoder and the axis clamping device from the unit and associate them with the Torque motor. This is possible through a meticulous and accurate design and industrialisation process of the entire unit. The key element that has allowed this paradigm shift is a particular bearing, designed and built by Technai, which can support and incorporate the functional elements.

MT-M SERIES SYSTEMS
Design industrializzato

Parts they are composed of

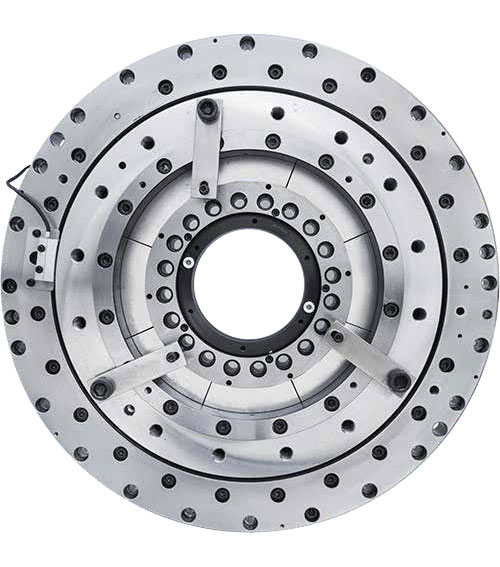

A torque motor with a cooling jacket, the bearing that is designed and built by Technai, which can support and incorporate a high precision absolute encoder and the hydraulic clamping device
Design industrializzato

3 dimensions

Mainly produced around 3 dimensions, which correspond to the respective stator diameter: MT-M360, MT-M500, MT-M660
Motore Torque Technai
Elevate prestazioni

Plug&Play System

Integration in a single direct drive motor, bearing, encoder, brake and cooling system module.
Efficienza energetica

Reference market

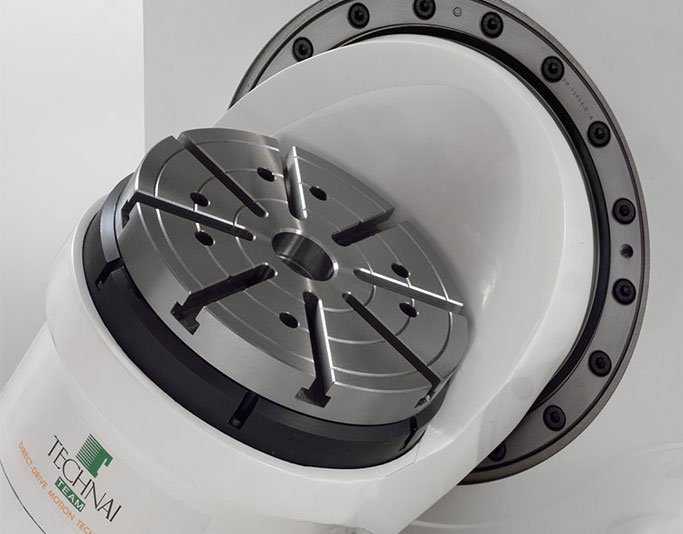

Table module for horizontal/vertical milling machines for positioning axis. Table module for horizontal/vertical milling machines for turning axis. Modules for rotary-tilting tables. Table module for grinding wheel carriage for grinding centres.
For more informations   DOWNLOAD BROCHURE
SYNTHESIS, SIMPLICITY, PERFECT INTEGRATION

This torque servomotor for rotary axes allows machine tool builders to configure a broad spectrum of application solutions quickly, easily and competitively.

MT-M SERIES

Plug&Play solutions

Having integrated the Direct Drive motor, the bearing, the encoder, the brake and the cooling system in a single ‘plug&play’ module, has created a new component, something that did not exist before.

The range of transmission modules for MT rotary axes is split into three main sizes, which correspond to the respective stator diameter: MT-360, MT-500 and MT-660, each of which can be equipped with different motor heights and with a package of options that allow customisation and to make it suitable for multiple configurations and structures.

SERIE MT-M Varianti & Formati

MT-M 360

      size 30 size 50 size 70 size 100 size 150
Motor rated torque (Air Cooling) Tac [Nm] 112 175 249 341 504
Motor rated current (Air Cooling) Iac [A] 6.4 6 12 11.6 18
Motor rated torque (Water Cooling) Twc [Nm] 239 415 587 821 1240
Motor rated current (Water Cooling) Iwc [A] 13.5 14 29.4 28.6 45
Motor peak torque Tpk [Nm] 428 724 1013 1448 2173
Motor peak current Ipk [A] 36.8 35 73.5 73.5 115
Max Intermittent rotation speed N max [rpm] 95
Recommended payload   [Kg] up to 2500
Clamping torque (@80 bar) Standard [Nm] 2920
Clamping torque (@80 bar) Advanced [Nm] 5110
Interface of measuring system     Absolute EnDat2.2
Max system accuracy   [arcsec] ± 7 (standard accuracy) / ± 3 (high accuracy)
Precision / Repeatability   [arcsec] ±1



MT-M 500

      size 30 size 50 size 70 size 100 size 150
Motor rated torque (Air Cooling) Tac [Nm] 220 340 435 615 922
Motor rated current (Air Cooling) Iac [A] 10.2 11 9.8 12 17.3
Motor rated torque (Water Cooling) Twc [Nm] 450 790 1100 1530 2390
Motor rated current (Water Cooling) Iwc [A] 22.6 26.3 25 31 47
Motor peak torque Tpk [Nm] 760 1460 1750 2400 3600
Motor peak current Ipk [A] 50 46 55 67 99
Max Intermittent rotation speed N max [rpm] 70
Recommended payload   [Kg] up to 4000
Clamping torque (@80 bar) Standard [Nm] 5710
Clamping torque (@80 bar) Advanced [Nm] 10000
Interface of measuring system     Absolute EnDat2.2
Max system accuracy   [arcsec] ± 5 (standard accuracy) / ± 3 (high accuracy)
Precision / Repeatability   [arcsec] ±1



MT-M 600

      size 30 size 50 size 70 size 100 size 150
Motor rated torque (Air Cooling) Tac [Nm] 400 523 865 1200 1800
Motor rated current (Air Cooling) Iac [A] 10.5 11.3 14.3 17.7 25
Motor rated torque (Water Cooling) Twc [Nm] 815 1300 2012 2900 4000
Motor rated current (Water Cooling) Iwc [A] 21.2 26 34 42 57
Motor peak torque Tpk [Nm] 1600 2400 3500 5000 7200
Motor peak current Ipk [A] 56.5 56 80 101 138
Max Intermittent rotation speed N max rpm] 50
Recommended payload   [Kg] up to 7000
Clamping torque (@80 bar) Standard [Nm] 10100
Clamping torque (@80 bar) Advanced [Nm] 17700
Interface of measuring system     Incremental distance coded 1Vpp
Max system accuracy   [arcsec] ± 5 (standard accuracy) / ± 3 (high accuracy)
Precision / Repeatability   [arcsec] ±1
