TCH MILLING HEADS TCH-13 H
TCH 13 H
New- 4 TH Generation design

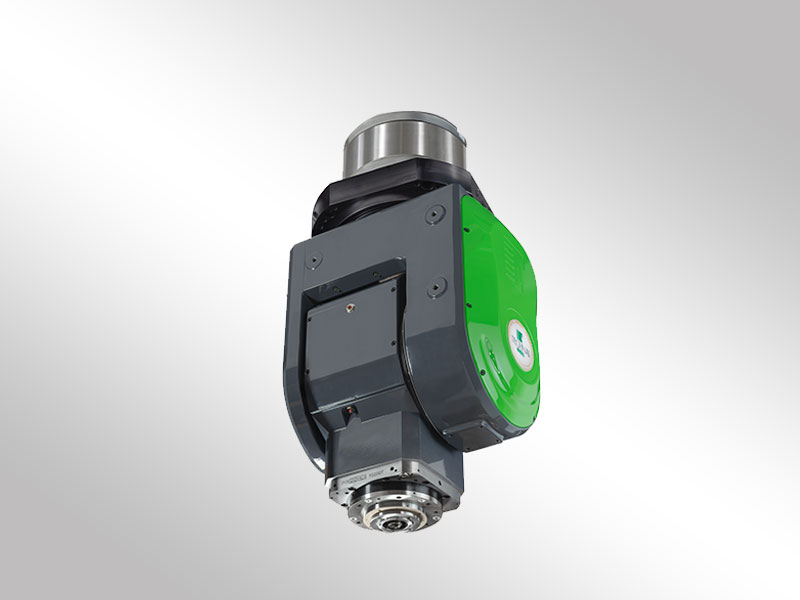

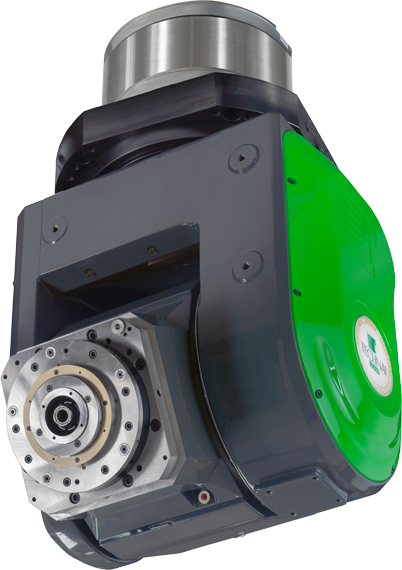

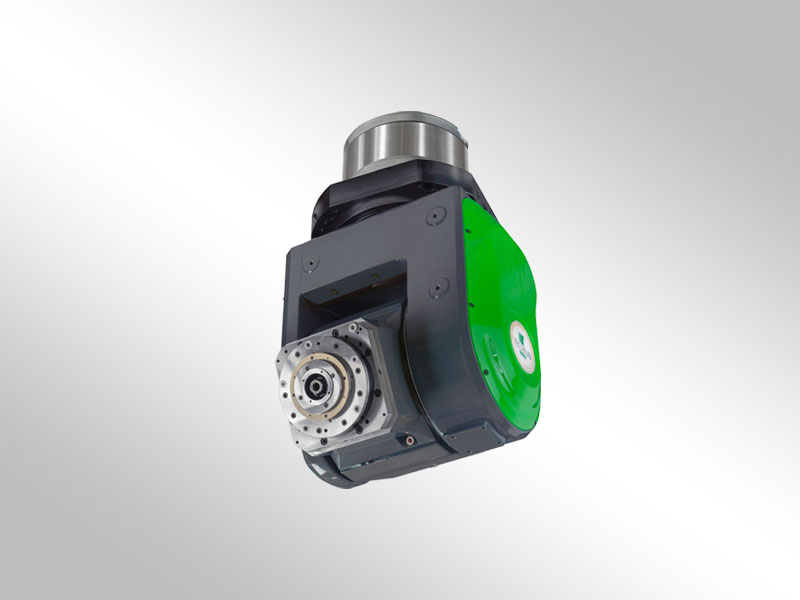

TCH 13 H is the most compact two-axis head with a fork structure offered by Technai
Optimal price-performance-precision ratio, accepts electric spindles with a body of up to D 180mm with a torque range of 35 -: - 60 Nm
Designed to excel in mould finishing, it is distinguished by optimal thermal stability. It is best used when equipped with high quality electric spindles It has Direct Drive motors on both axes that allow for optimal fluidity and excellent precision in executing the finishing trajectories with controlled axes (full 5-axis mode) It has powerful and rigid axis clamping devices to allow robust and stable processing with oriented and clamped axes (5-axis 3+2 mode) It is equipped with absolute encoders on both axes (EnDat protocol; DriveCliq, Fanuc).
| TCH 13 TECHNICAL DATA | A-AXIS | C-AXIS | |
|---|---|---|---|
| Maximum speed | rpm | 50 | 50 |
| Continuous torque | Nm | 282 | 321 |
| Maximum torque | Nm | 576 | 580 |
| Clamping torque | Nm | 2000 | 4100 |
| Axes Encoder | absolute | absolute | |
| Measurement system precision | arcsec | ±4” | ±7” |
| Rotation angle | deg | ±108° | ±360° |
| Weight | Kg | 420 |
Ø Max Body Electric spindle
180 mm
Max speed electric spindle
Up to 24000 rpm
Electric spindle torque
From 35 to 60 Nm
Tool
HSK -A63Reference application
Mould finishing
